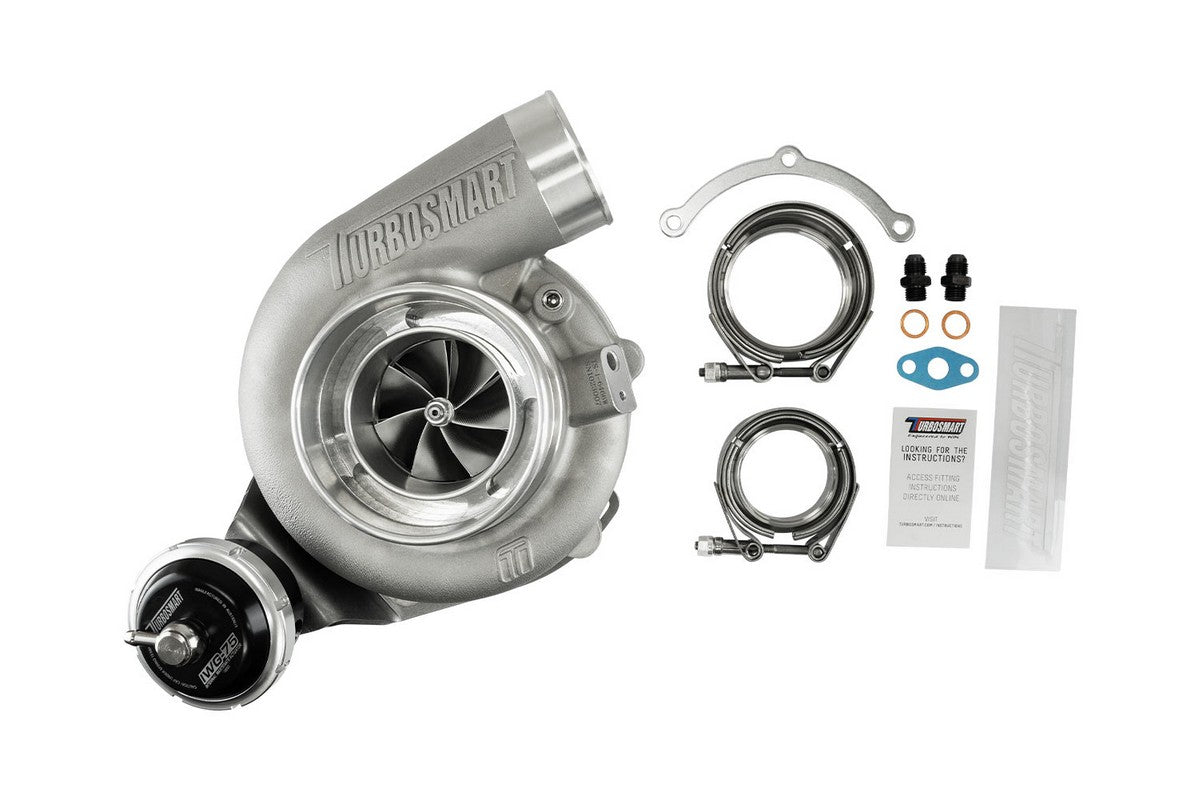

Turbosmart TS-2 Turbocharger Water Cooled Billet 6466 BB V-Band .82 A/R VB SS Internal Wastegate

Turbosmart TS-2 Performance Turbocharger (Oil and Water Cooled) Billet 6466 Ball Bearing V-Band 2.25" Inlet .82 A/R V-Band 3" Outlet Internally Wastegated 930HP

Smaller, Lighter & Faster – The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport and performance enthusiasts alike.

The TS-2 series are water and oil cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and main shaft combination which will provide the transient response you never knew possible with the type of performance, quality, reliability, and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines – While being smaller, lighter, and faster in response than other solutions on the market.

Features

• Oil and Water-cooled turbocharger
• Internally wastegated
• Unparalleled transient response
• Aggressive aerodynamics with 7+7 splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminium compressor covers
• CFD driven designed housings for optimal AR’s and flow
• T14 Inconel turbine wheel for extreme EGT’s
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing

Specifications
Compressor Inlet: 4" / 101.6mm
Compressor Outlet: 2.50" / 63.5mm
Compressor Inducer: 64mm
Turbine Inlet: V-Band (2.25")
Turbine Outlet: V-Band (3.00")
Turbine Exducer: 64mm
Turbine AR: 0.82
Weight: 6.06kg / 13.3lbs
